Version Control with git -- Mitch Negus and Yu Feng

September 20, 2017 at 5-6:30pm in BIDS, 190 Doe Library

If you don’t have git installed:

Git this

What happens when you don’t use version control?

A general life example:

You most likely started out doing something like this. Maybe you’ve become more sophisticated (or not) and now you

This is good, but you can still do better.

Why version control is amazing


Git is the method of version control we’re going to be working with. Other methods exist (SVN and Mercurial are the big names, and Wikipedia’s page history is a more commonly known example).

Git tracks your files by essentially taking a snapshot of a directory or subdirectory structure and saving it over time. The process of capturing one of these processes is called a commit.

To be a little more specific, you can think of Git as working in three different areas or bins. There is (1) the workspace, (2) the repository, and (3) the index.


The set of directories and files that you actually operate on.

Repository (repo)

The set of linked commits corresponding to snapshots of the workspace at specified points in time.


The staging area where you “set up your snapshot”; files in the index that have changed since your last commit will be updated on your next commit.


Each commit is given a unique label (called a hash) and is tied to the previous commit. This is created using a function which converts a set of information (i.e. your docs) into a string of letters and numbers. Hashes include a layer of security, since each relies on its parent’s hash.

Diagramatic Representation

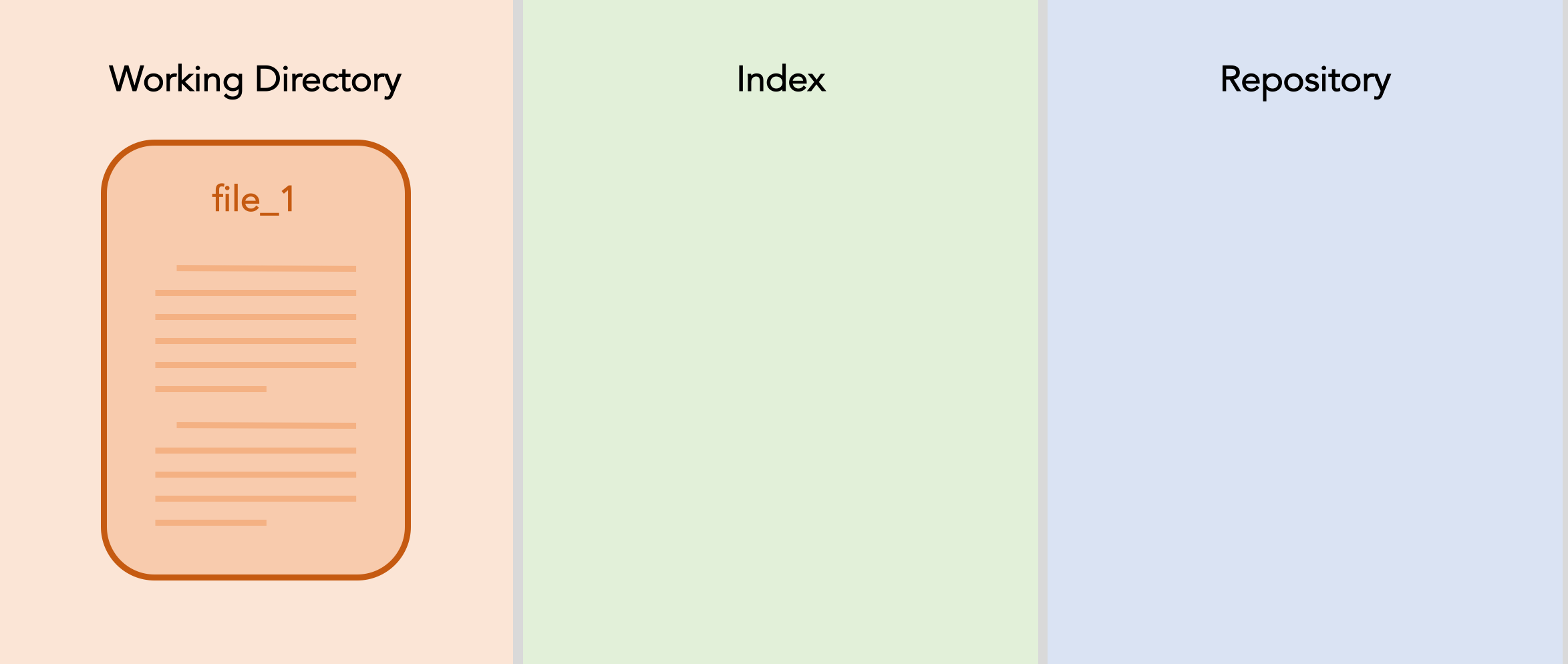

Below is a diagram of the git process for a single file; I’ve named it file_1. You start by creating the file in your workspace.

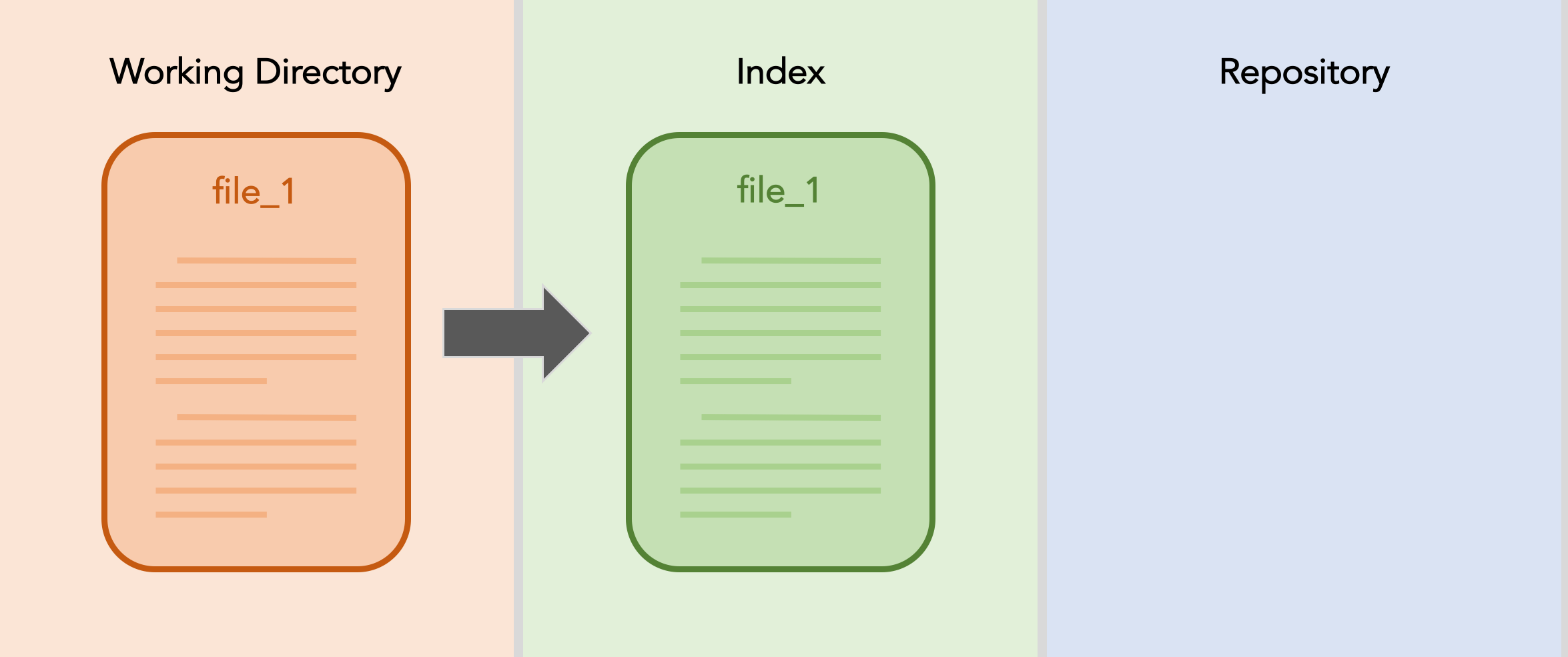

Once you are satisfied with it’s progress, you decide that you want to commit your work. You add the file to the index.

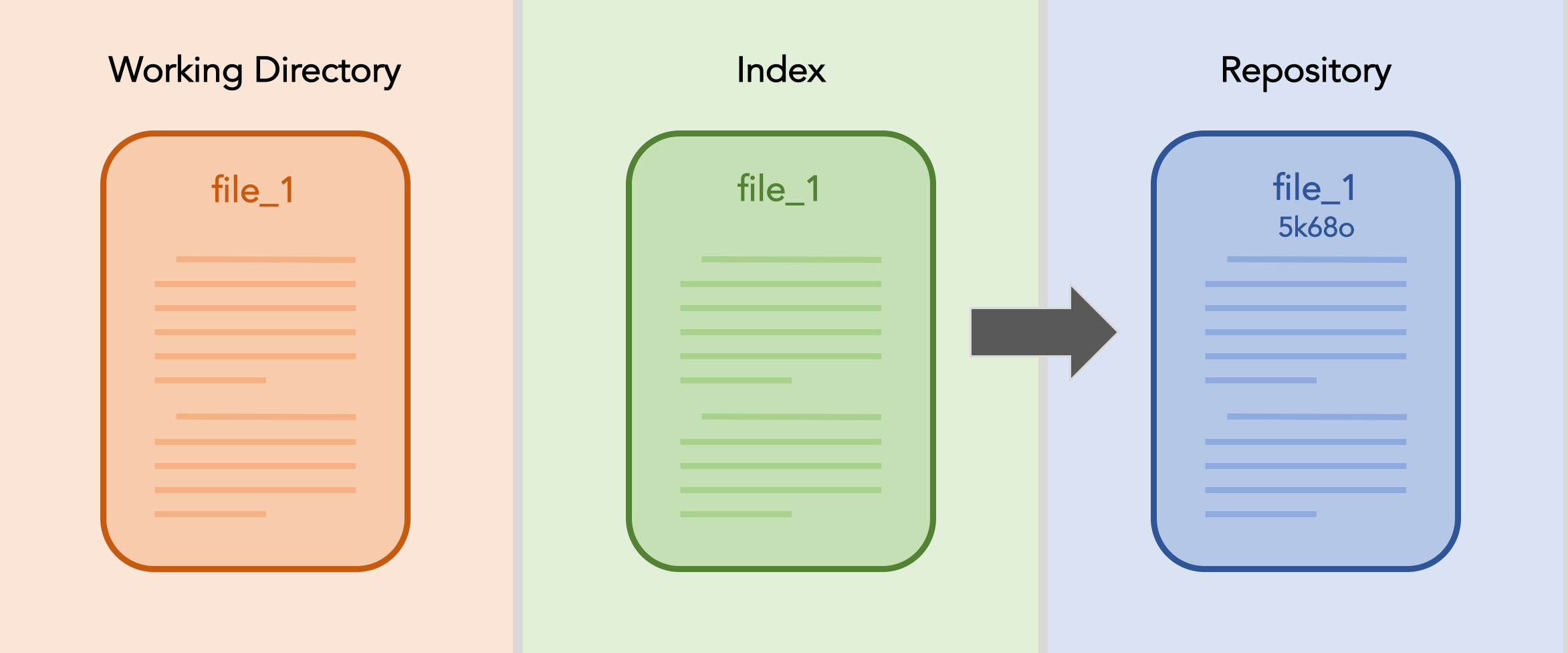

Now you’re ready. You can commit the file to your repository. (Notice that in the repository file_1 is shown with the hash of the commit. In reality the full hash for a git commit is much longer.)

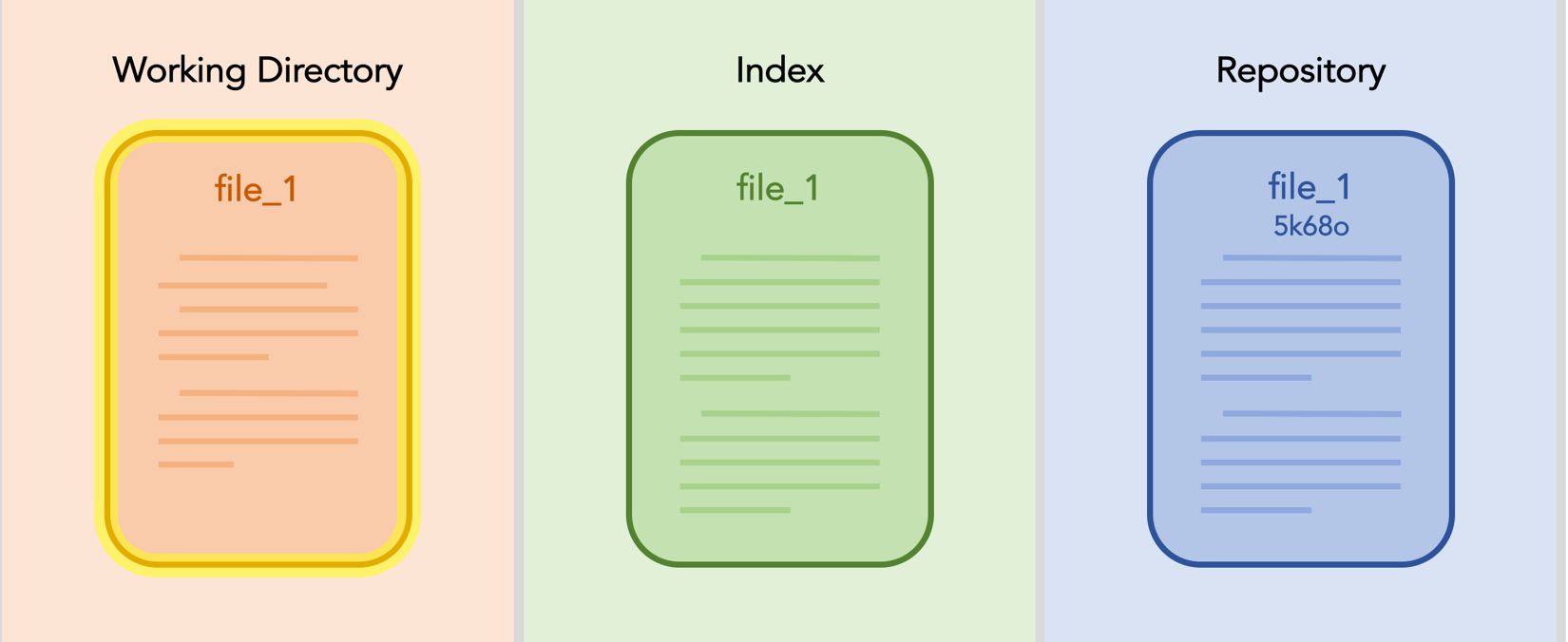

Now, if you make some changes to file_1. Your workspace changes.

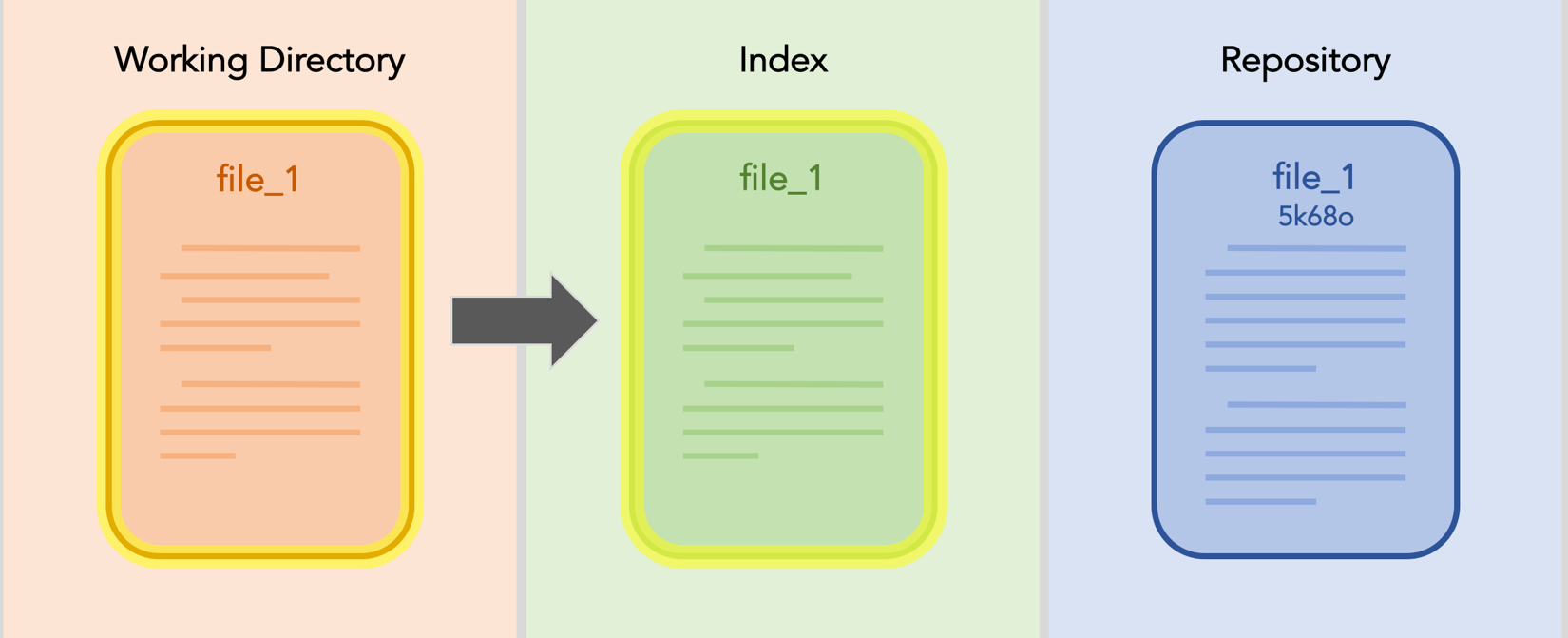

You add the changed file_1 to the index.

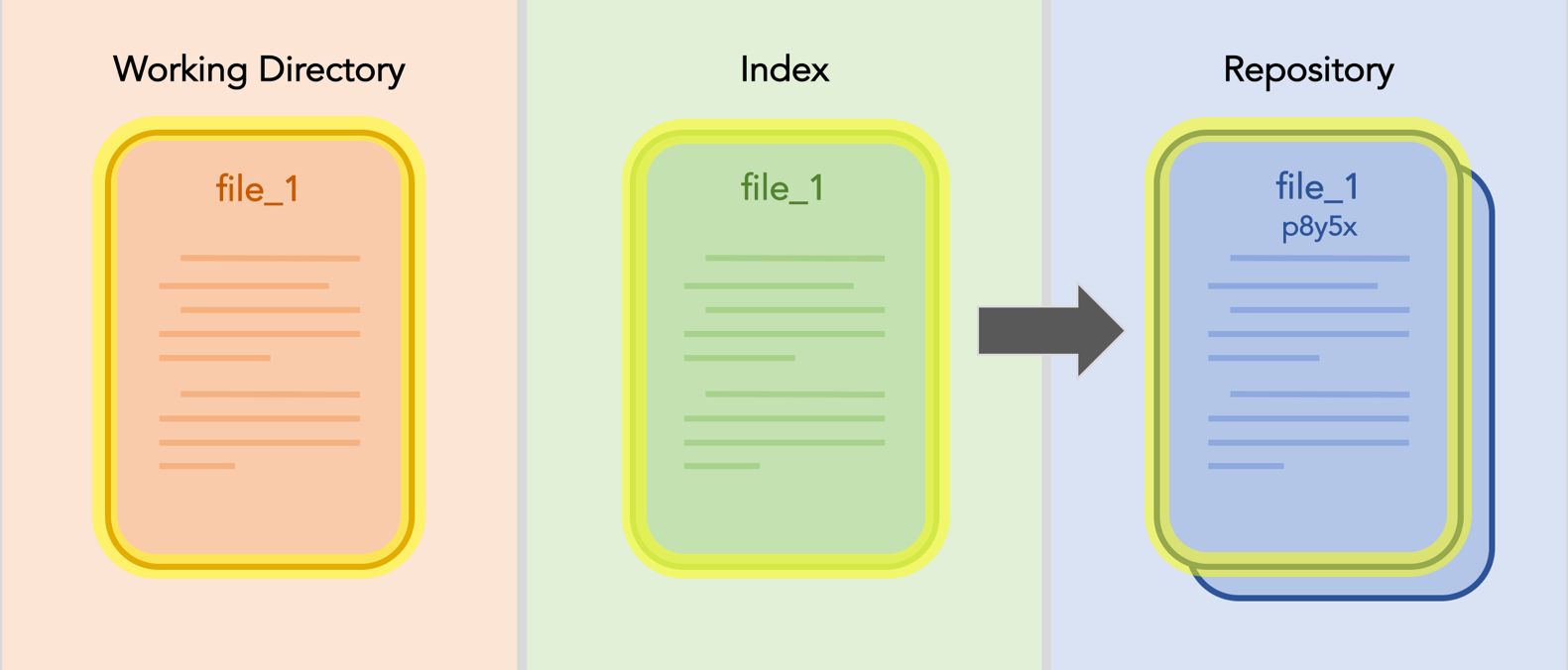

And again, you finally you commit. The new commit replaces the most recent commit, which moves deeper into the repository’s history.

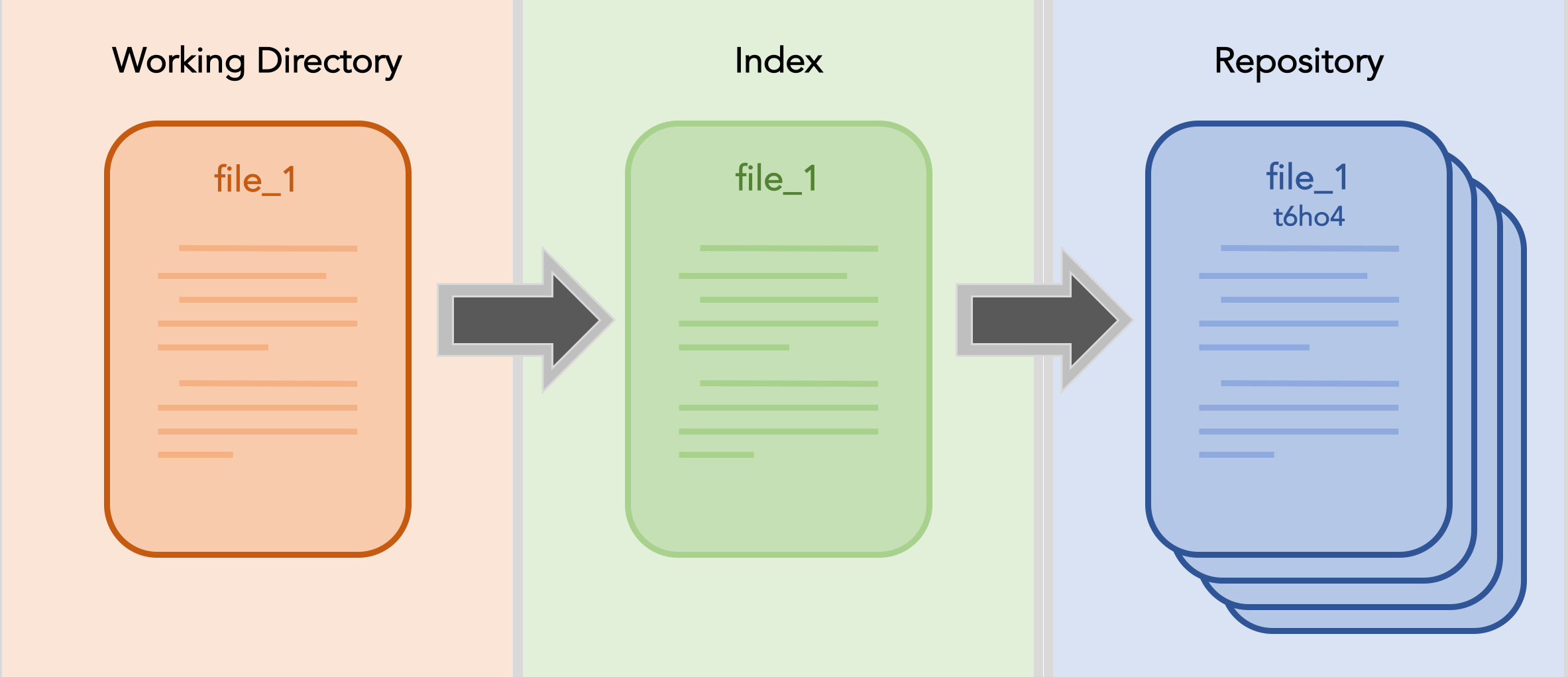

And the process repeats, on and on, continually building up your repository’s history.

Your turn to Git started

First we want to make a directory to track as the repository for this tutorial. Go somewhere in your file system and create this directory. Then navigate inside the newly created directory. (In the following code snippets, a $ indicates a command line prompt.)

$ mkdir git_tutorial
$ cd git_tutorial

Once you’re inside, its time to initialize the repository. Intuitively, this is done with the command

$ git init

Now, since this is likely the first time you’re creating a Git repo, you may want to set up some Git configurations. Feel free to skip this step (it is optional) but if you don’t do it now, Git will likely ask you for this information repeatedly in the future.

$ git config --global "OskiBear"
$ git config --global ""
$ git config --global core.editor /usr/bin/nano

Don’t worry, you can change this information later. It is stored in the hidden .git/config file that appears in whichever directory you ran git init. You can also use git config --list to print all of the configuration options for easy viewing.

If you already have a GitHub account, it is best to use the same username and email for both Git and that account. Additionally, if you have a preffered editor (vim, emacs, sublime, etc.), feel free to use that instead of nano as your default.

First off, we’ll make a very simple program. Open a new file called and add the following inside:

echo "Hello, World!" > hello.txt

Save the script, and exit the text editor.

We can now see the options that Git provides by using just the git command, with no options or arguments. It should show the git usage statement, providing descriptions of the most commonly used git commands.

At this point we will follow the steps outlined above. First, we will add our new file to the index, as we prepare to save a snapshot of it to our repository. This is straightforward enough, the command is

$ git add

If all goes well, nothing should be displayed on the console. If you want to check that your change was added to the index, type

$ git status

Git should then let you know that a new file, has been staged, and is ready to be committed. When you are ready, commit the changes with the git commit command. Adding the -m option allows you to give a short message explaining the changes.

$ git commit -m "created a new repository containing a simple script"

Let’s keep practicing. Now make another slightly more interesting program. This is a python script to use Monte Carlo rejection sampling to determine the value of $\pi$. Open a file called and include the following code inside.

import numpy as np

N = 1000
X = np.random.random(N)
Y = np.random.random(N)

scores = []
noscores = []
for n in range(N):
	x,y = X[n],Y[n]
	if x**2 + y**2 < 1:
	if n%10 == 0:

Again, save and exit the editor, and now follow the same steps as before. First, add the new file; then, commit the changes and include a brief message.

Let’s Git a bit more complicated

At this point, our repository is starting to get interesting. We can see how things are evolving in our repo with the command

$ git log

You will see a history of each commit, from the most recent commit at the top to the oldest commit at the bottom.

Open in an editor once again and change the script by adding the following lines:

Save the script and exit the editor. Now, the version of in our working directory is different than the version in the index (and by extension, in the repo). We can see the changes quickly by typing

$ git diff

on the command line.

Now, we’re going to take things even further. The really powerful parts of Git are used when two people are collaborating on a project (or when you are trying to multitask–working on two aspects of a single project independently from one another).

To see this, we are going to have you “break” one of your programs. To solve the issue, you are going to create a new branch where you go back and correct the problem. Now, the branch with the fix will be different from the original. When you try to bring the branches back together, to the original “master” branch, the changes will conflict, and you will be able to merge the changes. (If the changes didn’t conflict, for example if you just added an extra line of code, Git is smart enough to notice this fact and merge the documents automatically.

<Create a diagram to show/explain the following procedure>

Open the script and change the echo statement to be more like the original “hello, world” scripts

echo `hello, world` > hello.txt

Since we haven’t created a new file here, we can use a handy shortcut to avoid having to type both git add and git commit. Type

$ git commit -am "message of your choice"

The new option -a adds all modified documents to the index automatically before the commit is enacted.

Now, if you run the program again, the file hello.txt now contains the statement in all lowercase.

Since this is improper English, we decide to change the shell script back to the way it was before. This time though, we’re going to work on a new branch. Creating a new branch allows us to make changes to the code, including as many commits as we’d like, without actually modifying the original “master branch” of the code. Let’s try it.

$ git checkout -b englishfix

The git checkout statement allows you to extract files and branches from the repository. Since our branch had not already been created, we needed to use the -b option. If the englishfix branch already existed, we could omit the -b.

Now we are on the englishfix branch. Let’s go ahead and fix the script, changing hello, world to Hello, World. Commit the changes. Now, if you use git checkout master (master is automatically named when you use git init) and look at the script (type cat hello.txt) you will see that your changes on the englishfix branch were not transferred. This is super useful if you have a working version of a piece of code and want to add a new feature without taking the risk of breaking your code in the meantime.

What if you had been working on the script in the meantime? Still on the master branch, open the script, and add the exclamation point back in. Change “hello, world” to “hello, world!”, save and exit the editor.

Now, since we did want to incorporate the changes on the englishfix branch into the master branch, we should merge the englishfix branch into the master branch. Type

git merge englishfix

You should get an error (which includes a culprit file). Even though git is usually smart enough to perform automatic merges, when a line of code is edited two different ways on two different branches, it doesn’t know what to make of the situation. This best solution, give it back to a human and let them make some sense out of it.

To resolve the conflict, use git diff to have the differences between the conflicting documents printed to the console, and then use an editor to fix the discrepancy. Finally, add and commit the changes, and then the merge is complete!

Find image of Git repo as tree to emphasize branched nature



As we mentioned earlier, you can manually edit the configuration file to update your Git settings. To do this, move to your home directory and open the file .gitconfig.


You can also tell git to ignore specific files by adding them to a .gitignore file. Find (or create) this file as .gitignore in the top level of the repo where you want it to apply.

Note you can use wildcards in these filenames! (i.e. *.log will ignore all files ending in .log)

Other things:

git checkout
git stash
git reset
git rebase

Git Cheat Sheet

You can often think of the operations that Git performs on the three “areas”–workspace, index, and repo–as mathematical equations. Here are some examples (for each Git command, perform the steps in order):

git add

$ \text{staged index} = \text{workspace} - \text{current branch} $

git commit

(with -a option: $ \text{staged index} = \text{workspace} - \text{current branch} $) $ \text{new commit} = \text{staged index} $ $ \text{current branch} = \text{new commit} $ $ \text{staged index} = 0 $

git checkout

$ \text{new workspace} = \left(\text{workspace} - \text{old branch}\right) + \text{new branch} $

git stash

$ \text{stash} = \text{workspace} - \text{current branch} $ $ \text{workspace} = \text{current branch} $

git reset –hard

$ \text{workspace} = \text{current branch} $
